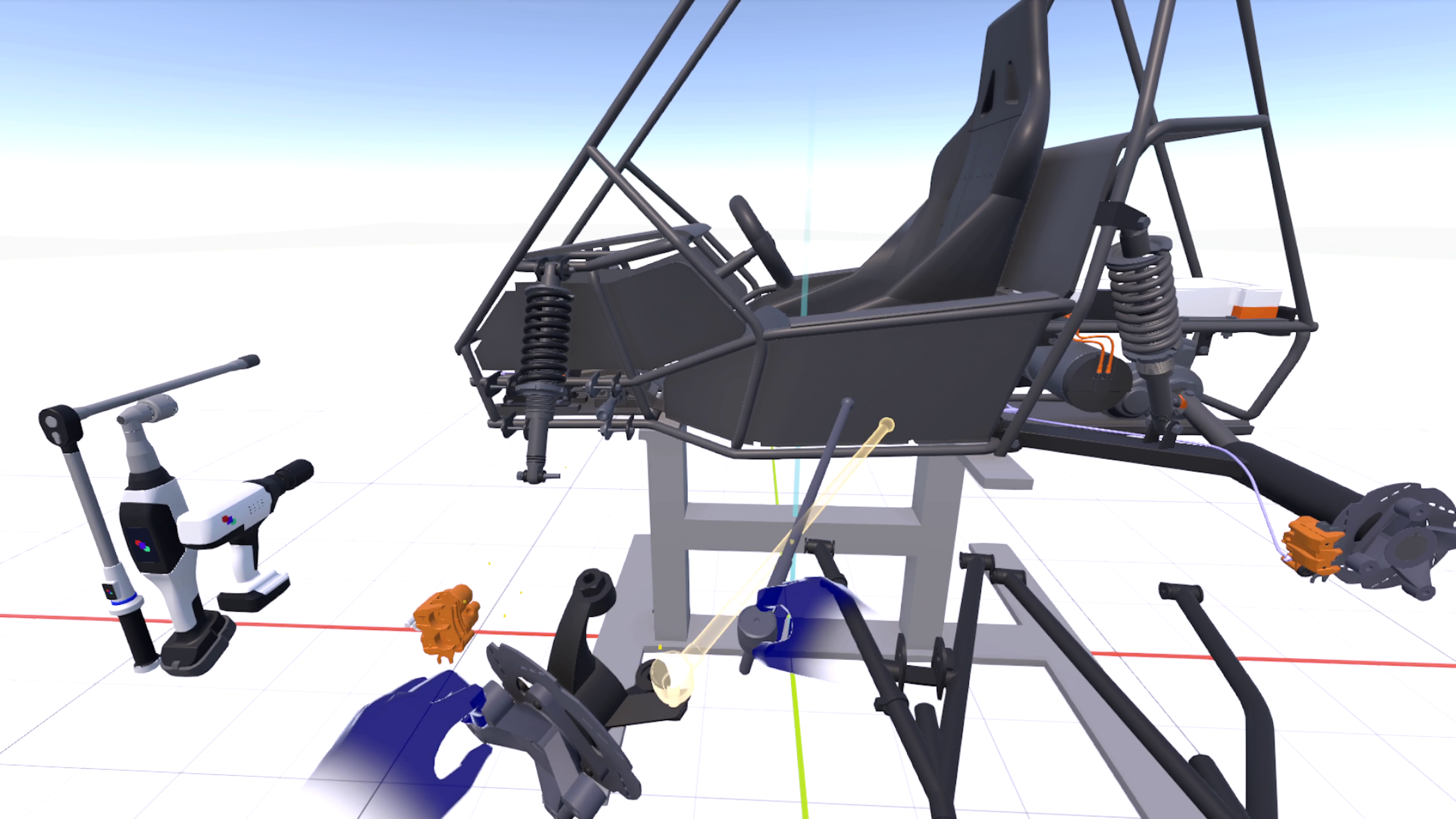

In the VR application of Halocline Assembly you can analyze CAD data, disassemble and export individual assemblies to Halocline Layout. At first, import one or more CAD files.
Import CAD Data

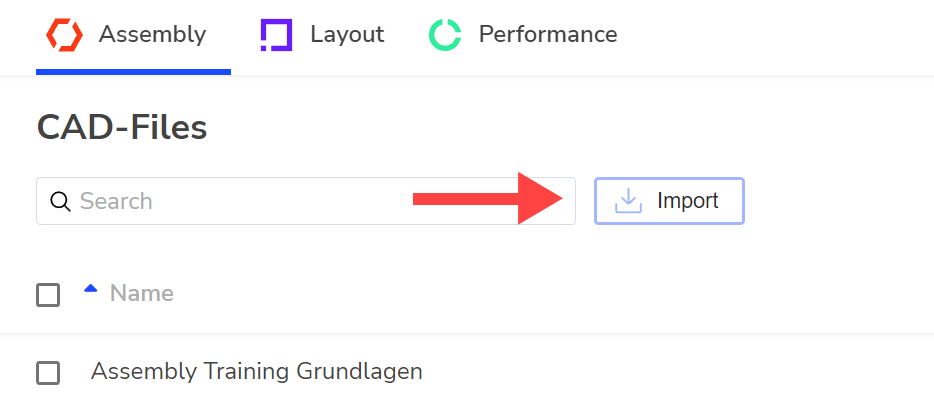

In the Assembly tab, click the Import button in the upper left corner. Select one or more files in one of the supported CAD formats.
The selected files appear in the list. Wait until the loading bar at the file disappears.
Start VR
Make sure your headset is connected and ready to use. You can open one file or several files at a time.
Single file
Click the "Start VR" button in the list on the right side. The VR application opens in a new window. Put on your headset to start planning in VR.
Several files

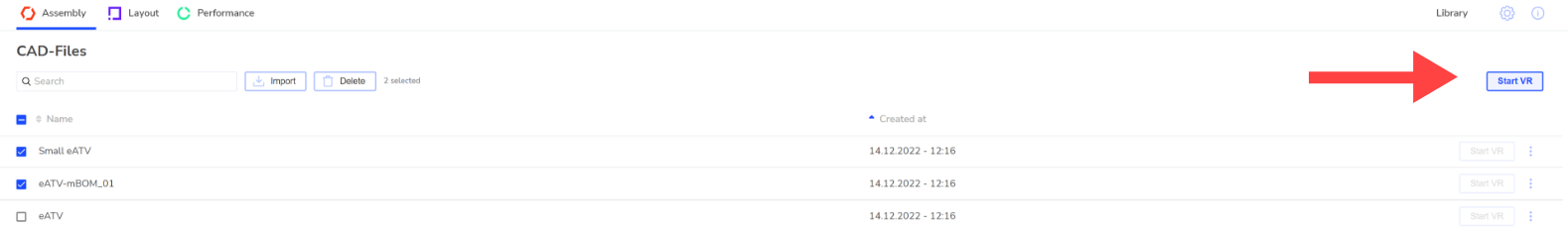

Select multiple list items with one click and click "Start VR" in the upper left corner. In the VR application, all selected files are placed next to each other.
Next Steps
Use our tutorial to get to know the basics and functions for various use cases:
